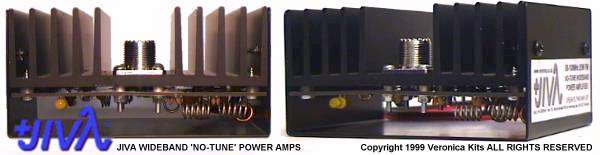

12W FM VARIABLE POWER AMPLIFIER
'NO-TUNE™' WIDEBAND
Jiva, the new name in wideband technology.....




This power amp is the perfect companion for our PLL transmitter and any other 500mW to 1W transmitter. The large RF gain provides a massive power boost of around 14dB (25 times !!!!).

Unlike other power amps on the market, this unit is supplied complete with heatsink fully built and tested. The 100-240V AC model will operate on any mains power supply in the world. Just hook up the power amp to your antenna, transmitter drive and power supply. Never take off the lid, no tuning needed, no test equipment required. This unit is truly plug and play.

The power amp will remain very stable under severe load mismatch conditions. Harmonics and spurious are below -50dB making the amp compatible with most countries licensing conditions. The power amp is suitable for RSL stations in the UK.

The circuit design uses discrete transistors, not an RF module. This ensures that any replacement parts will always be readily available.

Careful design of the RF output stage matching provides very efficient DC to RF conversion allowing the amp to run just warm in nearly all environments without an additional fan. This efficiency will give the power amp long life and reliability.

Ideal for radio broadcasting up to 9 miles 11dB of RF Gain
Wideband 'No Tune' from 88MHz to 108MHz Input VSWR less than 1.3
Operates from standard 13.8V power supply Rugged, 30:1 SWR mismatch capability
Supply Current only 2.5 to 3 amps Very Stable up to 30:1 SWR mismatch
RF Power and DC Supply LED indicators Compact size of 120mm x 100mm x 62mm
Heatsink Mounted 50 Ohm RF SO-239 Input and Output Sockets
PSU DriveMin O/PTyp O/P
13.8v 0.5W 7W 8W
13.8v 1W 12W 13W
No Low Pass Filter Required, Spurious and Harmonic Emissions better than -50dB
