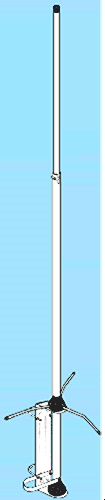

5/8 WAVE VERTICAL ANTENNA
PROFESSIONAL RANGE
Continuous Reliable Power......

MORE THAN DOUBLE YOUR POWER

4.8dBi Gain, 2.8 times Effective Power Increase
90 MPH Plus, Wind Handling/Survival
+/- 2MHz bandwidth from centre frequency
Low VSWR < 1.5
50 ohm unbalanced input (SO-239 socket)


This high performance antenna is precisely tuned to the operating frequency of your choice. Using a tuned antenna provides your transmitter with a perfect match and a gain of around 4.8dB, increasing your effective radiated power by about 2.8 times.

With correct mounting the RF field strength directly below this antenna is much lower than a dipole. The truly unbalanced input prevents any RF currents traveling down the outer of the feeder cable. This combined with the low field strength below the antenna reduces the chance's of audio and TV interference considerably and maximises RF power to the horizon.

Coaxial line losses can be considerable at 88-108MHz. For long runs use a good quality cable such as RG213 or equivalent for connecting the antenna to the transmitter.

Total Length 2 metres approx. The antenna is constructed 100% from aluminum with the exception of a few plastic insulators and therefore does not contain any steel parts that can rust away.
PLEASE STATE FREQUENCY ON ORDERING
